WALK-THROUGH FOOTWEAR SANITIZING UNIT






1
1

A STEP AHEAD OF FOOD SAFETY

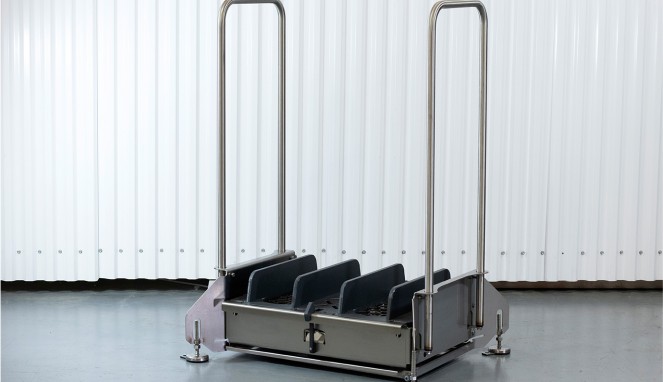

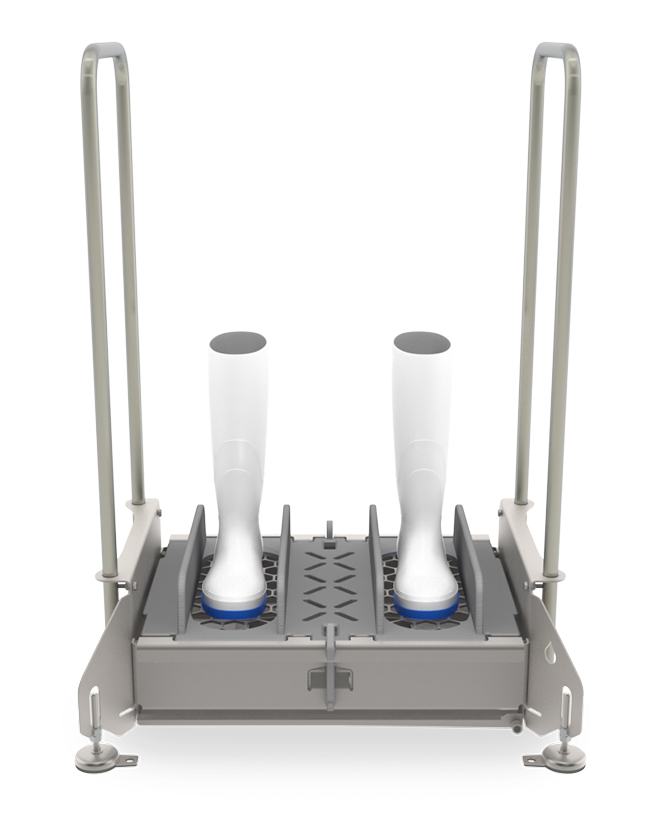

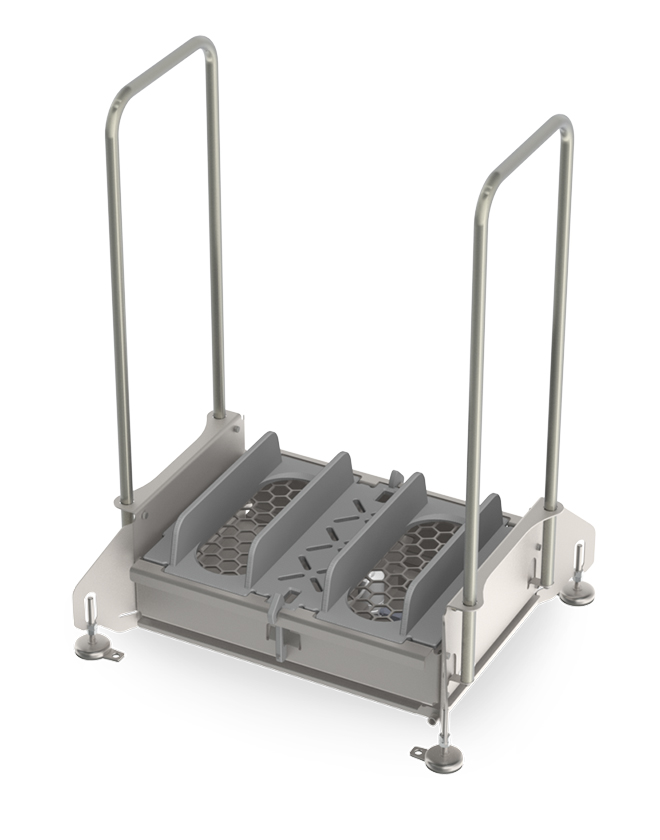

Clean those boots by simply stepping onto the unit. Once both feet are on, the unit activates to release
a mist of chemistry to cover the sole. Place it in entryways and transition zones to ensure team compliance. Works with our chemical jugs or your choice of reservoir with 1/4 in. suction line.

  • Easy-to-use walk-through sanitation for entryways and transition zones
  • Users can enter from either side to smooth traffic flow in busy areas
  • Walk-through design ensures compliance
  • Low-moisture system
  • Air-operated pump delivers a consistent amount of sanitizer (0.4 oz/11.81 mL) per spray

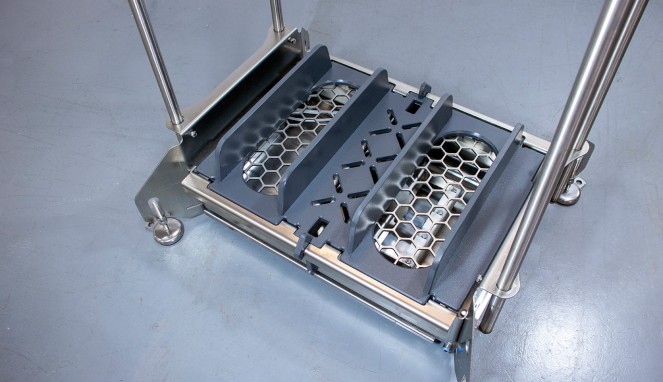

  • Collection basin is easy to access or swap out for cleaning
  • Draws from pre-mixed solution
  • Works with our chemical jugs or your chosen chemical reservoir with ¼ in. suction line
  • Powered by compressed air

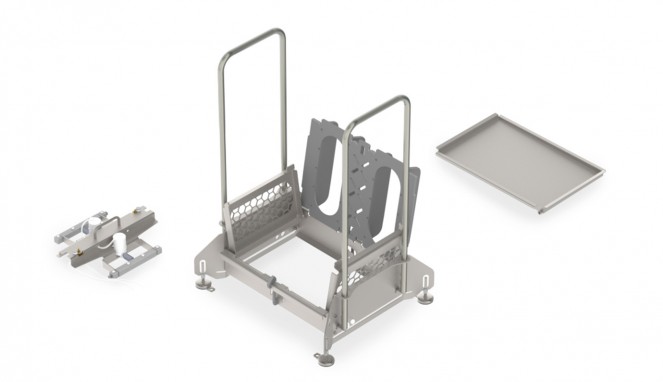

  • Easy to disassemble and clean
  • Adjustable leveling feet
Compressed air requirements60-80 psi (4.1-5.5 bar) with 1 cfm (28.3 l/min)
Regulator not included with unit
Liquid temperature range40-100˚F (4.4-37˚C)
Chemical compatibilityChemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department.
Power typeCompressed air
Chemical pickup typeDraws from pre-mixed solution
Number of products unit can draw fromOne product
Suction line length/diameter3 ft (0.9 m) clear hose with 1/4 in. (6.4 mm) inside diameter
Output volume*0.4 oz (11.83 mL)
Flow rate*0.4 oz (11.83 mL)
Pump sealsViton
Number of nozzles8 nozzles
Product dimensions29.5 x 28 x 42 in. (74.9 x 20.3 x 106.7 cm)

*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
